OCPP charging profiles and schedules can be easily visualised through our Schedule Visualiser and Editor tool. Limits are displayed in a clear, interactive, easy to follow stepped graph.

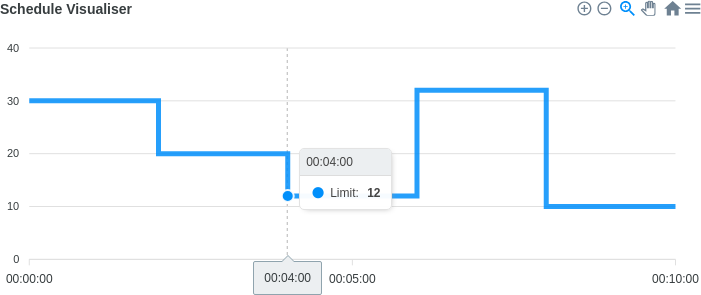

This tool allows you to view how limits will change over time, either relative to the start of a transaction or at absolute times, depending on the profile ChargingProfileKind.

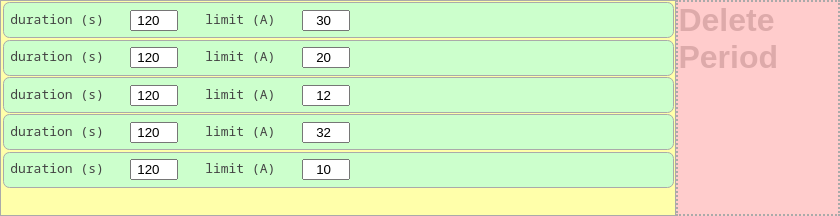

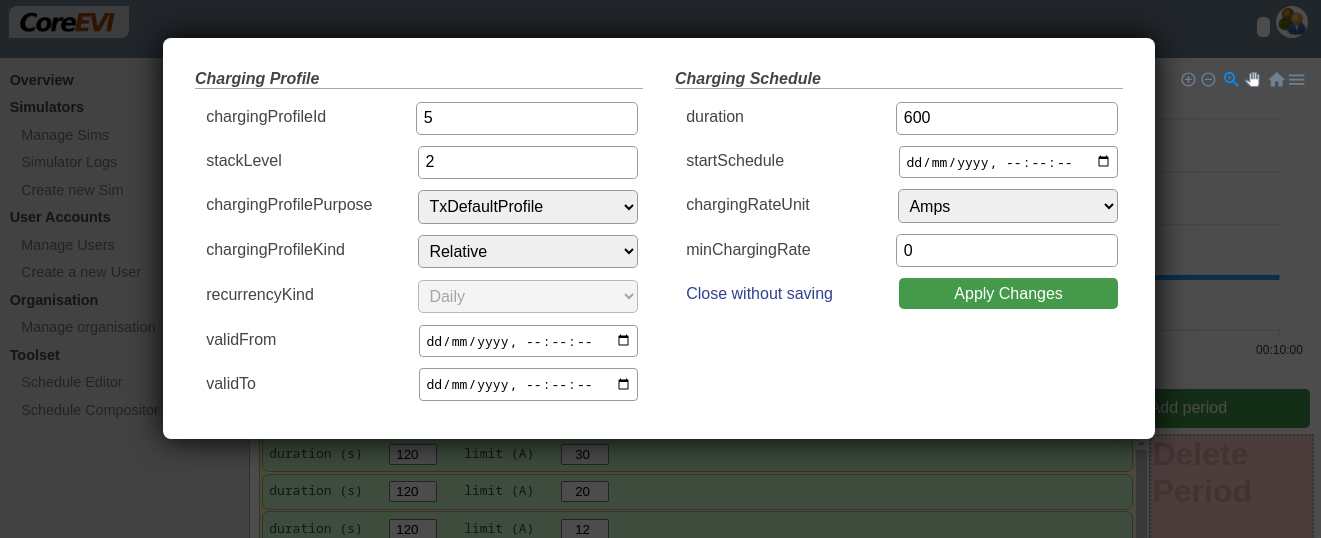

You can easily change properties of the schedule through a simple to use form, and even edit the periods by changing their limit, rearranging them, or removing them completely through an intuitive interface.
When you're ready you can export the ChargingProfile payload JSON and save it locally, and upload it later to view or edit the profile again.
OCPP schedule compositing can be a complex subject if you're not familiar, and even if you're an expert it can be very helpful to have a way of quickly visualising how charging profiles will be put together.

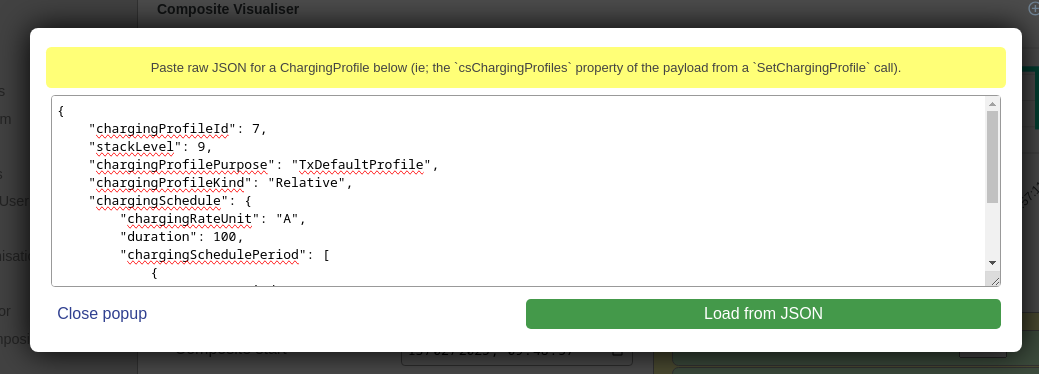

Our OCPP schedule compositor tool allows you to import ChargingProfile payloads from JSON files, or directly paste the raw JSON to add the profiles to the list the compositor will take in to account.

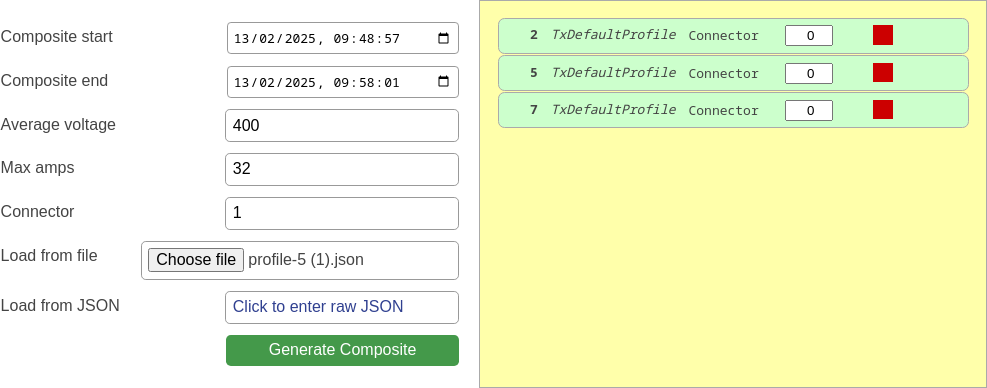

You can choose the timeframe of the composite to build and the connector to build it for, and specify some values to take in to account when converting between power and energy profiles, or the maximum fallback limit of the connector.

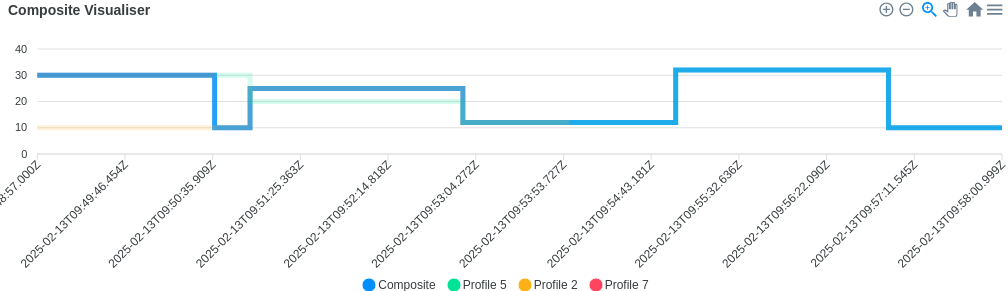

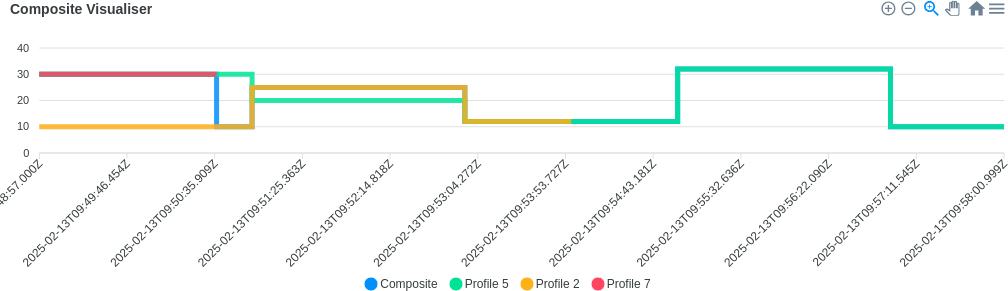

Once you're ready the information provided will be taken into account in building a suitable composite for the specified period. You will also be shown the parts of the supplied ChargingProfiles that went in to deciding on the final limits.
